Description
P91 20-Inch Fat Tire Full Suspension Dirt E-Bike
Quick profile: 20-inch fat tire e-bike / hub motor drive / suspension fork + rear coil shock / integrated wheelset / dealer-ready specification page
Contents
Highlights
- Frame: 6061 aluminum alloy
- Fork: 20″ suspension fork
- Rear Shock: Mid-mounted coil rear shock
- Motor: Hub motor · EU 250W / US 750W–1000W
- Battery: 48V 25Ah
- Drivetrain: Shimano Tourney 7-speed
- Brakes: Hydraulic disc brakes · 180 mm rotors
- Tires: 20×4.0 fat tires
- Weight / Load: 35 kg net · max load 150 kg
↑ Back to top
Basic Information
| Model |
P91 |
| Category |
20-Inch Fat Tire E-Bike |
| Frame |
6061 Aluminum Alloy |
| Size |
One Size |
| Recommended Rider Height |
165–195 cm |
↑ Back to top
Frame & Suspension
| Frame |
6061 Aluminum Alloy |
| Fork |
20″ Suspension Fork |

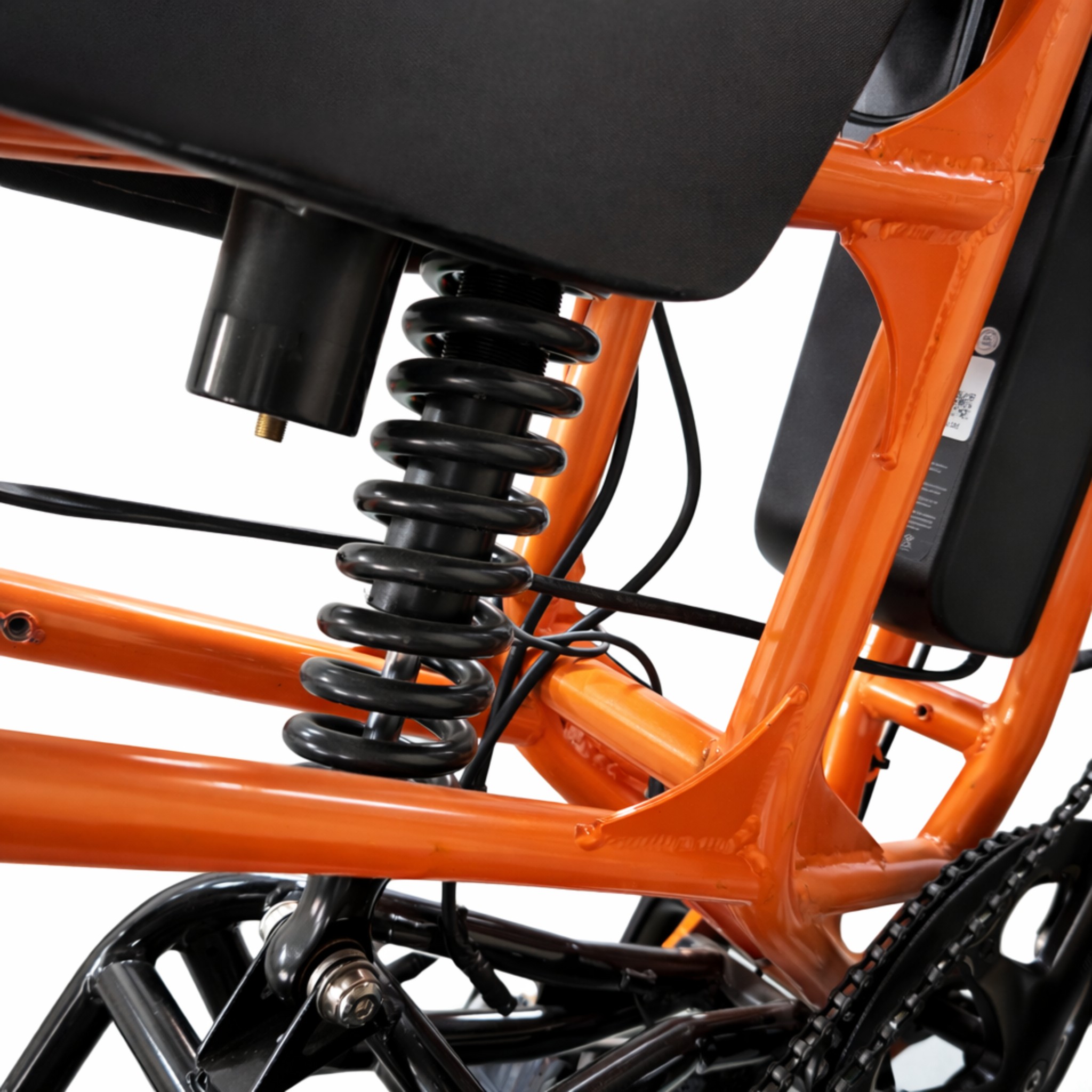

| Rear Shock |
Mid-mounted Coil Rear Shock |
↑ Back to top
E-Assist System
| Motor |
Hub Motor · EU 250W / US 750W–1000W |
| Battery |
48V · 25Ah |

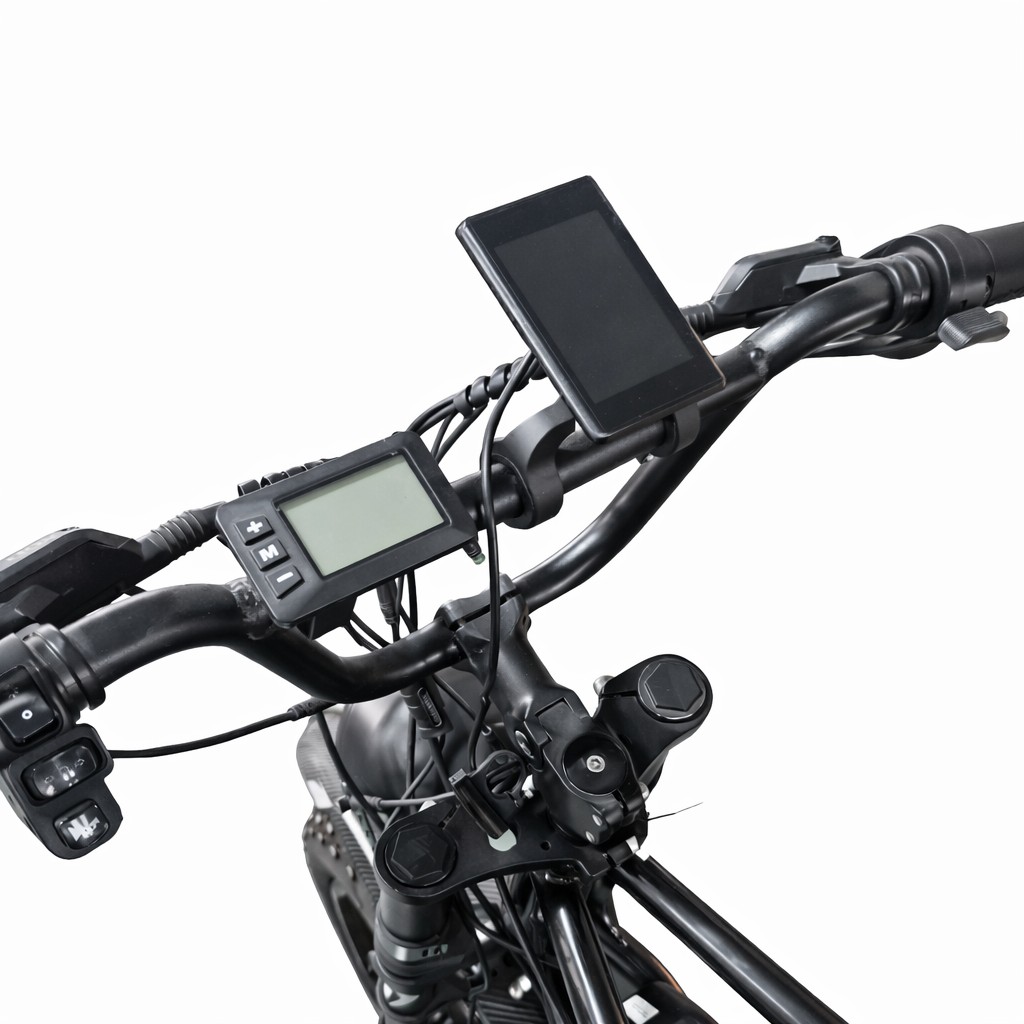

| Display / Controller |
M5 |
| Charger |
48V Dedicated Charger · 2A |
Market note: EU version is typically configured as 250W / 25 km/h pedal assist. US version can be configured with 750W or 1000W depending on market requirements. Please confirm final version before order.
↑ Back to top
Drivetrain & Shifting
| Chainring / Crank |
48T |
| Bottom Bracket |
HBT910 |
| Rear Derailleur |
Shimano Tourney 7-Speed |
| Shifter |
Shimano TX50-7 |
| Freewheel |
Shimano TZ500-7 |
| Chain |
KMC Z7 |
↑ Back to top
Brakes
| Front Brake |
Hydraulic Disc Brake |
| Rear Brake |
Hydraulic Disc Brake |
| Brake Rotors |
180 mm |
↑ Back to top
Wheelset
| Wheelset |
20″ Integrated Wheelset |
| Hub |
Integrated Wheel Design |
| Rim |
20″ Magnesium Alloy Rim |
| Tires |
20×4.0 |
↑ Back to top
Cockpit & Seat
| Stem |
PROMAX MA-595 |
| Handlebar |
Promax 31.8 |
| Grips |
TPE / TPR Grips |
| Saddle |
One-Piece Long Saddle |
| Seat Support |
Integrated Saddle Support |
↑ Back to top
Accessories
| Front Light |
LED Front Light |
| Rear Rack |
Rear Rack |
| Fenders |
Front and Rear Fenders |
| Kickstand |
Side Kickstand |
↑ Back to top
Weight & Load
| Net Weight |
35 kg |
| Max Load |
150 kg |
| Size |
One Size |
| Recommended Rider Height |
165–185 cm |
↑ Back to top
Range Note
Range depends on assist level, rider weight, terrain, temperature, speed, and riding style. Please contact us for target-market configuration and available range data.
↑ Back to top
Dealer Inquiry
Interested in dealer pricing / availability / EU or US configuration?
Please send us your country, planned quantity, and sales channel. We will reply with quotation and product details.
- WhatsApp / Tel: +86 189-6232-7591
Note: Specifications may vary by market or version. OEM/ODM available.
