Description

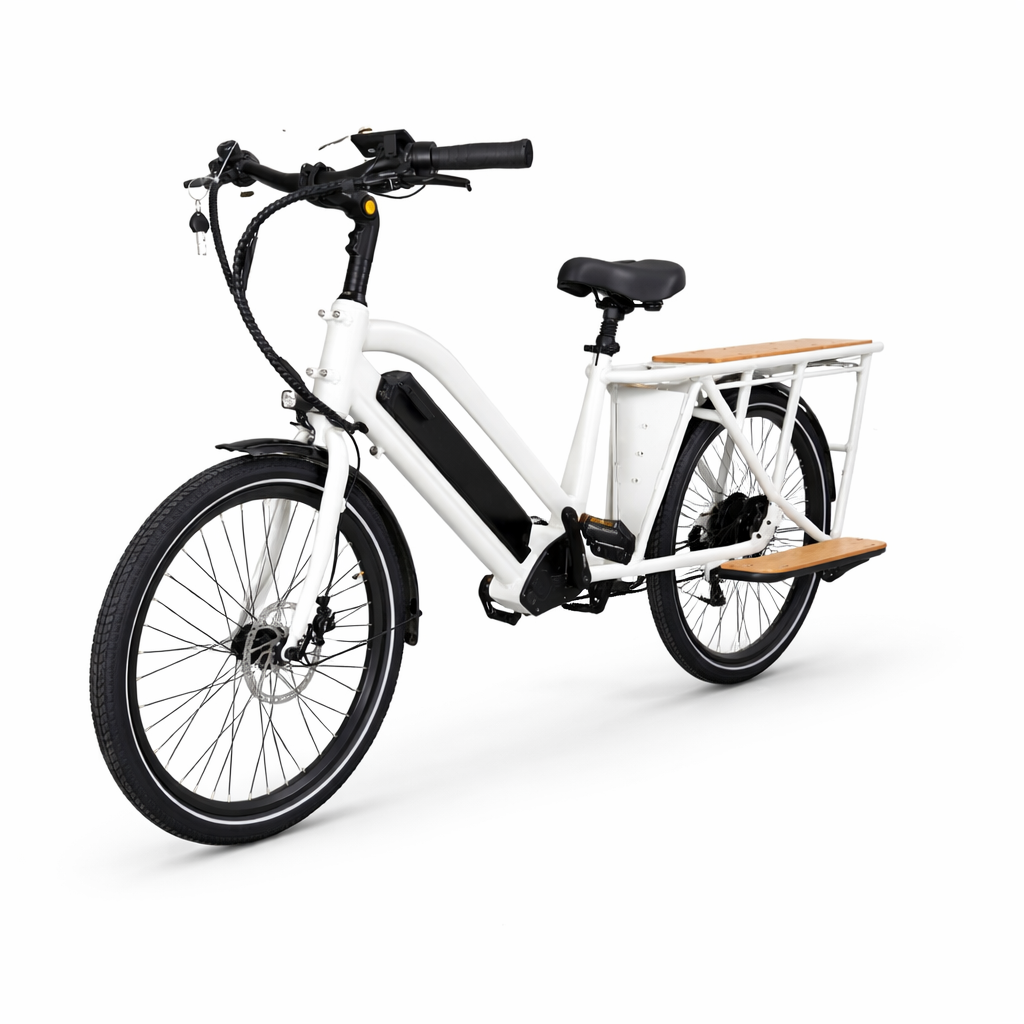

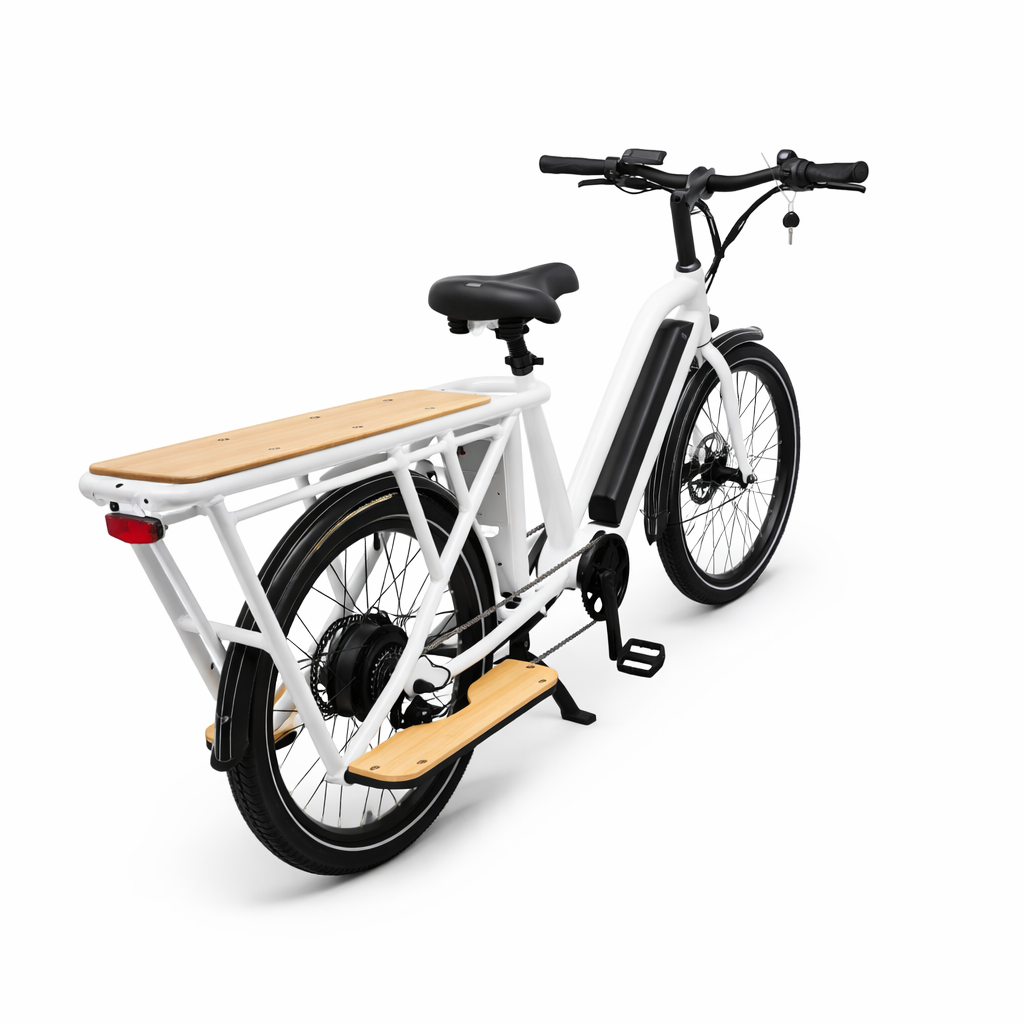

P98 Cargo E-Bike
Quick profile: 24-inch cargo e-bike / low-step frame / hub motor drive / rigid fork / integrated rear cargo rack / dealer-ready specification page
Contents
Highlights
- Frame: 6061 aluminum alloy low-step cargo frame
- Fork: 26″ aluminum alloy rigid fork
- Rear Rack: integrated rear cargo rack
- Motor: hub motor · EU 250W / US 750W / 1000W
- Battery: 45V 20Ah
- Drivetrain: Shimano Tourney 7-speed
- Brakes: hydraulic disc brakes · 180 mm rotors
- Tires: 24×2.4
- Weight / Load: 32 kg net · max load 180 kg
↑ Back to top
Basic Information
| Model |
P98 |
| Category |
Cargo E-Bike |
| Frame |
6061 Aluminum Alloy Low-Step Cargo Frame |
| Structure |
2-Wheel Cargo Structure |
| Size |
One Size |
| Wheel Size |
24 inch |
| Recommended Rider Height |
160–190 cm |
↑ Back to top
Frame & Suspension
| Frame |
6061 Aluminum Alloy Low-Step Cargo Frame |
| Fork |
26″ Aluminum Alloy Rigid Fork |
| Rear Suspension |
None |
| Rear Rack |
Integrated Rear Cargo Rack |
Application note: pedal-assist cargo e-bike for daily cargo and utility use.
↑ Back to top
E-Assist System
| Motor |
Hub Motor · EU 250W / US 750W / 1000W |

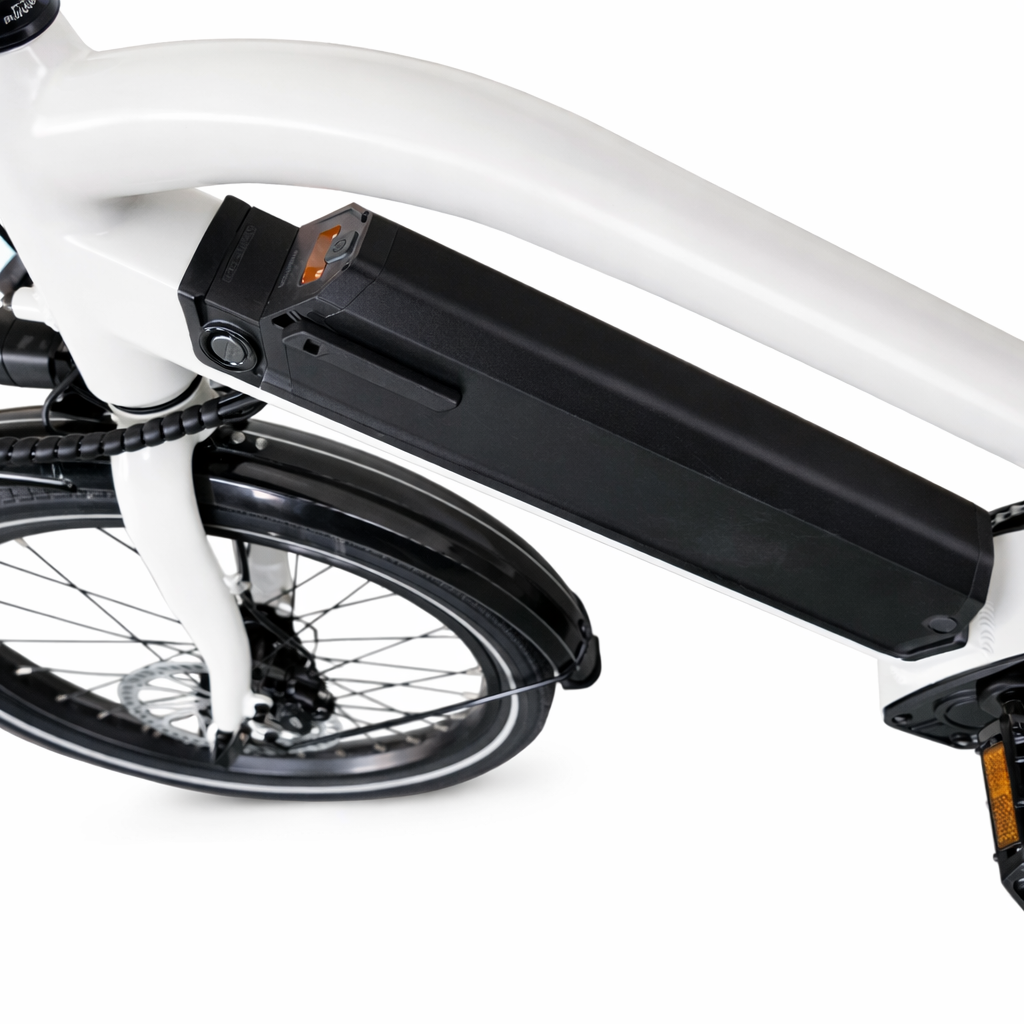

| Battery |
45V · 20Ah |

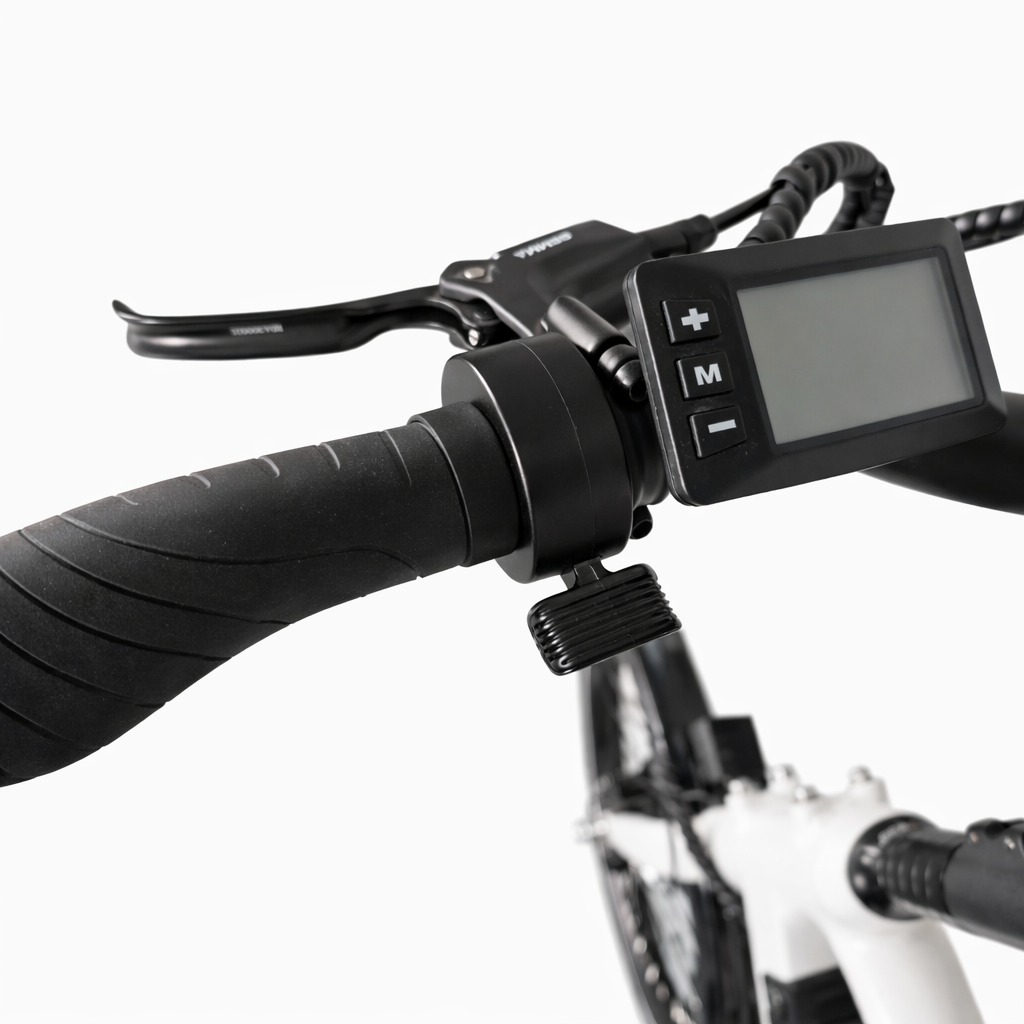

| Display / Controller |
LCD Display / Controller |
| PAS Levels |
5 Levels |
| Charger |
45V Dedicated Charger · 2A |
Market note: EU version is typically configured as 250W / 25 km/h pedal assist. US version can be configured with 750W or 1000W depending on market requirements. Please confirm final version before order.
↑ Back to top
Drivetrain & Shifting
| Chainring / Crank |
48T |
| Bottom Bracket |
Sealed Bottom Bracket |
| Rear Derailleur |
Shimano Tourney 7-Speed |
| Shifter |
Shimano TX50-7 |
| Freewheel |
Shimano TZ500-7 |
| Chain |
KMC Z7 |
↑ Back to top
Brakes
| Front Brake |
Hydraulic Disc Brake |
| Rear Brake |
Hydraulic Disc Brake |
| Brake Rotors |
180 mm |
↑ Back to top
Wheelset
| Wheelset |
24″ Spoke Wheelset |
| Hub |

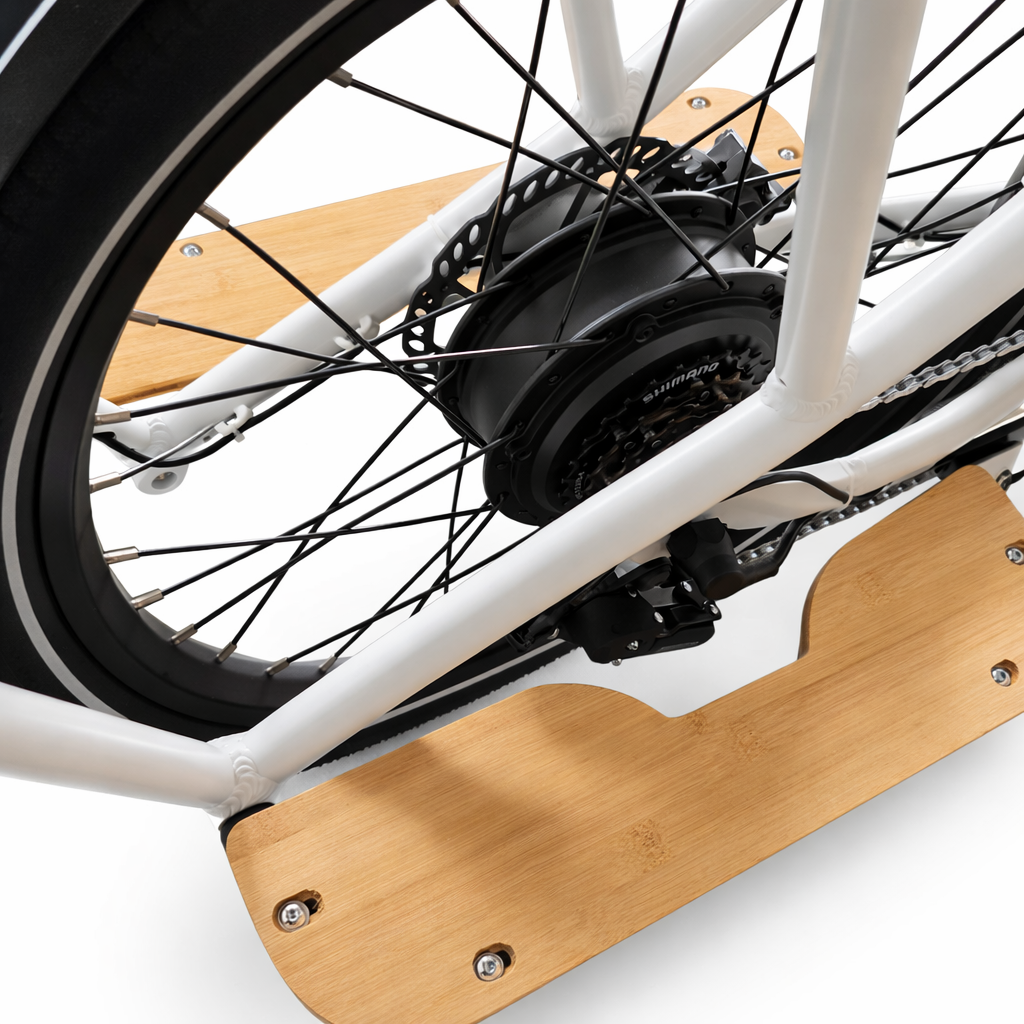

Front Hub + Rear Motor Hub |
| Rim |
24″ Double-Wall Aluminum Alloy Rim |
| Tires |
24×2.4 |
↑ Back to top
Cockpit & Seat
| Stem |
Fixed Stem |
| Handlebar |
31.8 Urban High-Rise Handlebar |
| Grips |
TPE / TPR Grips |
| Saddle |
Urban Comfort Saddle |
| Seatpost |
Aluminum Alloy Seatpost |
↑ Back to top
Accessories
| Front Light |
LED Front Light |

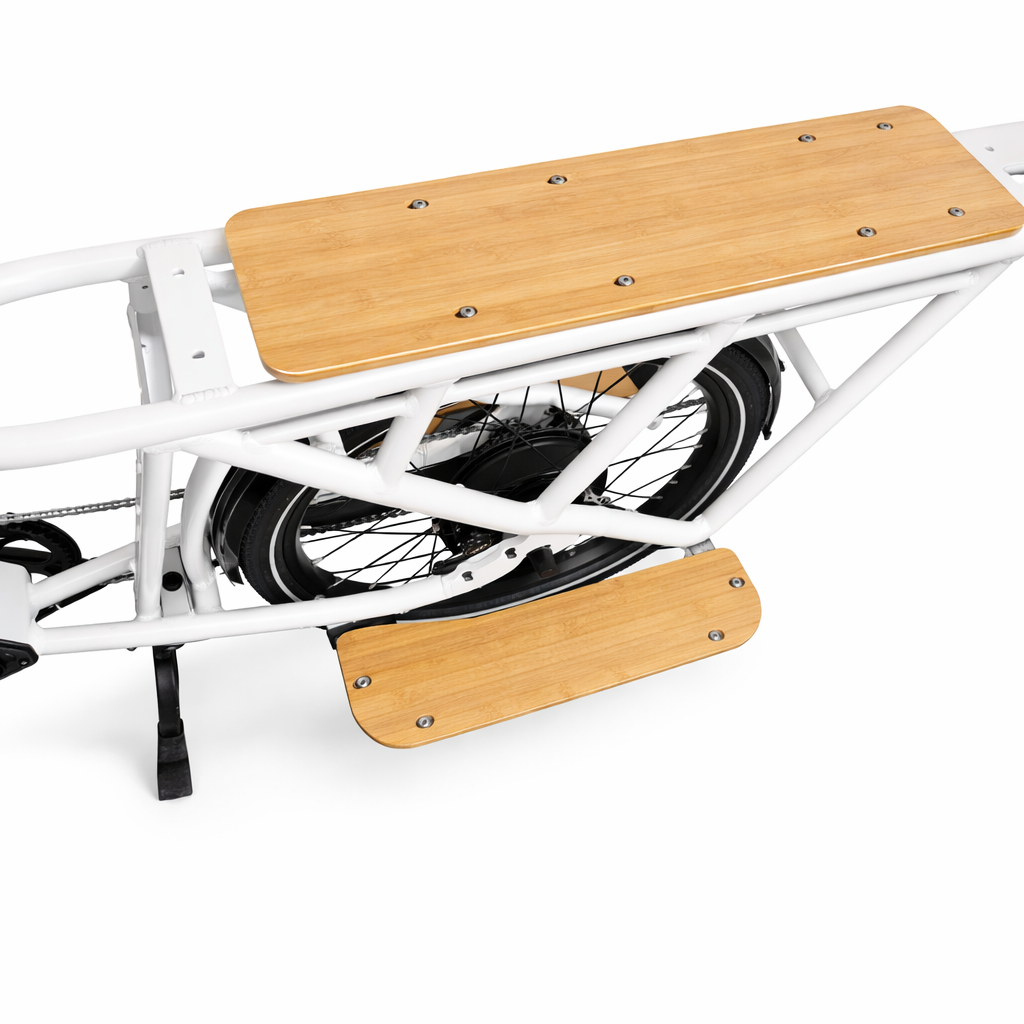

| Rear Rack |
Integrated Rear Cargo Rack |
| Rack Panel |
Wood-Grain Panel |
| Rack Function |
Cargo / Passenger Dual Use |
| Fenders |
Front and Rear Fenders |
| Kickstand |
Center Kickstand · Dual-Leg Design |
↑ Back to top
Weight & Load
| Net Weight |
32 kg |
| Max Load |
180 kg |
| Size |
One Size |
| Wheel Size |
24 inch |
| Recommended Rider Height |
160–190 cm |
↑ Back to top
Range Note
Range depends on assist level, rider weight, terrain, temperature, cargo load, speed, and riding style. Please contact us for target-market configuration and available range data.
↑ Back to top
Dealer Inquiry
Interested in dealer pricing / availability / EU or US configuration?
Please send us your country, planned quantity, and sales channel. We will reply with quotation and product details.
- WhatsApp / Tel: +86 189-6232-7591
Note: Specifications may vary by market or version. OEM/ODM available.
